High speed rolling shutter door making machine
High speed rolling shutter door making machine could help you make the rolling shutter in batch fully automatic. The speed could reach 50m/min. The high speed machine is designed based on the normal speed machine 25m/min but different with the tranditional shutter doors, it has improved the following elements:
- Using independent strong frame stand.
- Using moving and flying shearing system.
- Adding turkey head to make the size and shape accuracy and beatiful.
- Add fully automatic receiving table.

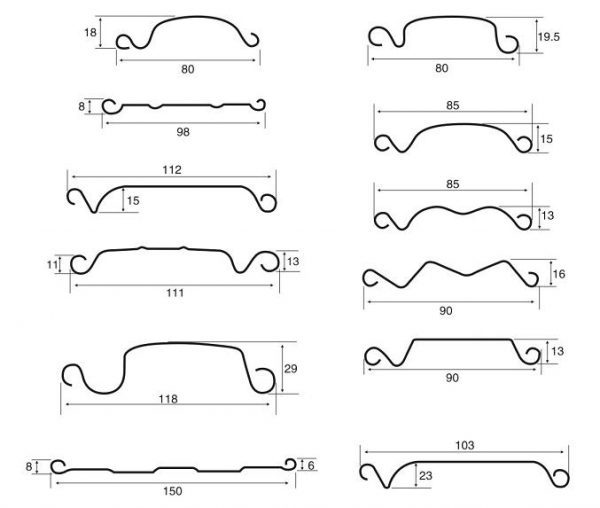

In the following article, I will take a random drawing profile to show machine parameters:

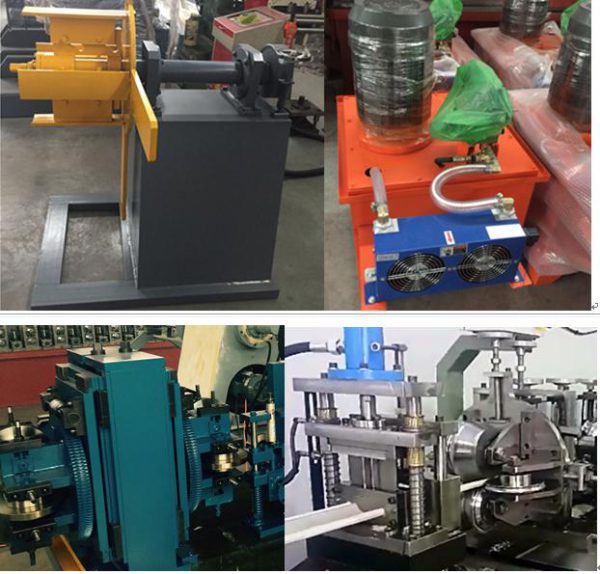

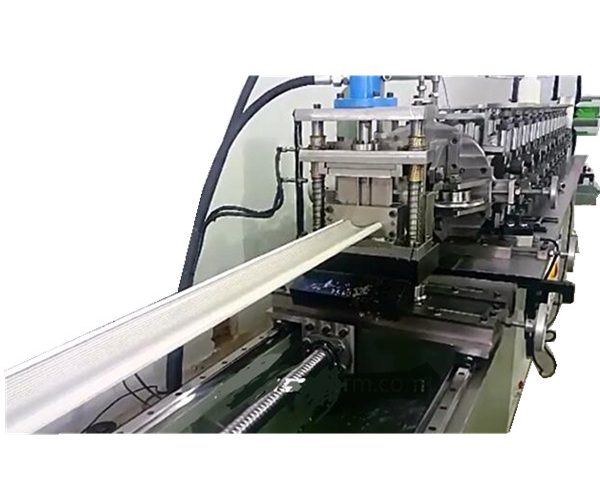

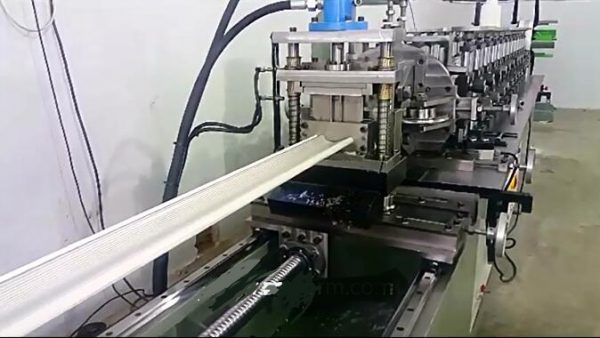

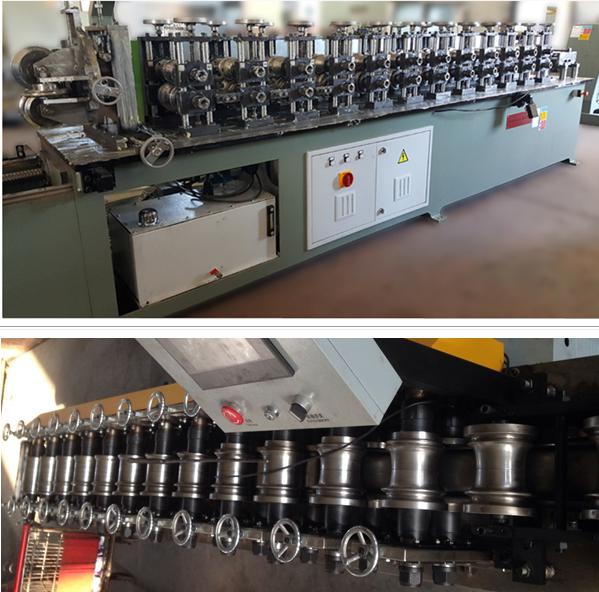

High speed rolling shutter door making machine pictures for your reference:
Here are some parameters of high speed rolling shutter door making machine:
|Main roll forming machine system:
a. Number of forming steps: 24 stations
B. Shaft material: 45# steel with quenched treatment, precision machined,
The diameter: ￠80mm
c. Roller material: Cr12 Mov with quenched treatment
d.Transport: by gear
e. Forming speed: 40m/min
g. Voltage: 380v, 50Hz,3 phase or customize
h. Structure: independent stand
i. Size of machine: 4.5m *0.8m *1.2m
|Flying Shearing system:
The material of blade: Cr12Mov,
Hardening HRC 58-62℃
2 sets single head Turkshead, with 4 rollers*2sets
Hydrailic the infinite cutter to make sure the shearing speed and shape
For making sure the sizes and make the cruve beautiful.
Servo motor drive to make it fast speed.
Adtvantage: lower noise and perfect shape, no stop shearing.
Hydraulic motor Power: 3kw
Hydraulic oil: 46#
Hydraulic pressure: 12 Mpa
Hydraulic station with water cooling down system as when machine working at high speed, hydraulic oil is not so powerful, we need to make it cool down.
For this machine if you want to know more information, please contact us at any time.
