Metal steel door frame roll forming machine

Metal steel door frame roll forming machine

This Metal steel door frame roll forming machine is including feeding, leveling machine, the first feeder, punch press, the second feeder and combination machine tools, strip of material installed in feeding shelf, described leveling machine feeding port and discharging port and feed port horizontal alignment, described the first feeder including step pushing device.

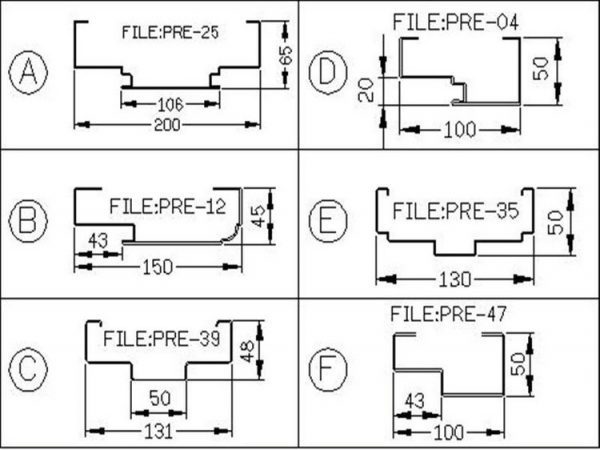

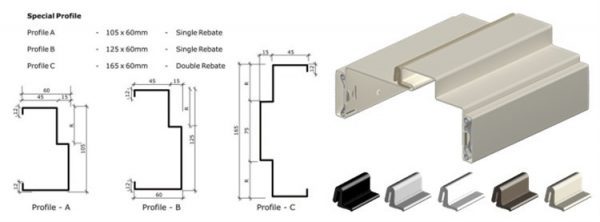

Here are popular drawings of door frame for your reference:

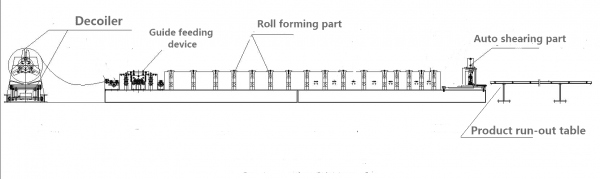

Work flow:Uncoiling→ Feeding material into machine →Roll forming →Auto shearing part → Products receiving table

Main specifications of Metal steel door frame roll forming machine:

1  Machine name Metal steel door frame roll forming machine
2  Dimension 6500*800*1500mm
3  Weight 4.5T
4 Total power 11KW
6 Voltage  380V/50HZ/3PH
7  Forming steps 15 steps
8  Forming speed 12-15m/min
9  Material thickness 0.8-1.5mm
10 Tolerance ±1mm

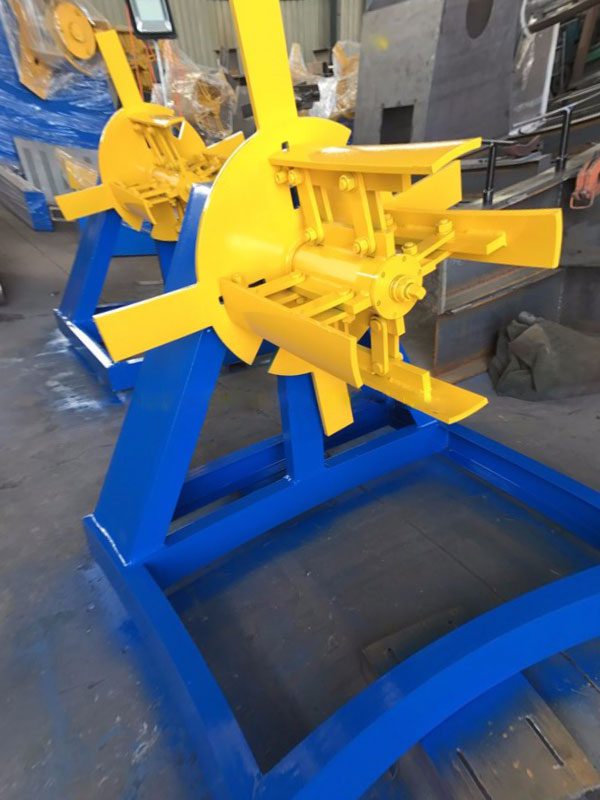

Manual decoiler of  Metal steel door frame roll forming machine:

Loading capacity:3 T
Inner diameter: 450-550 mm

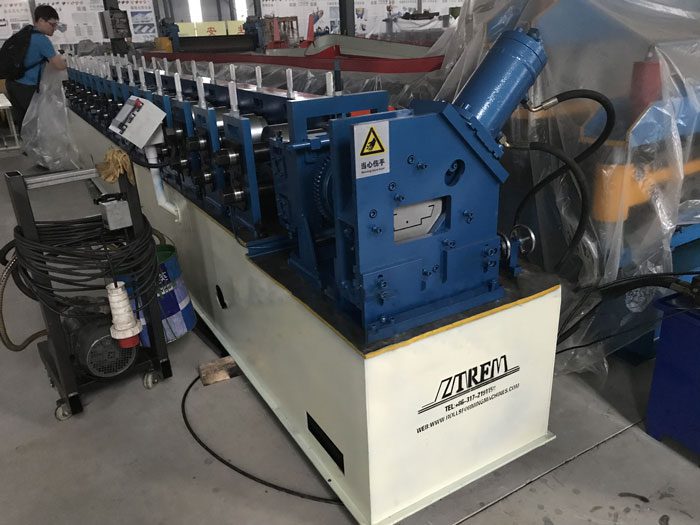

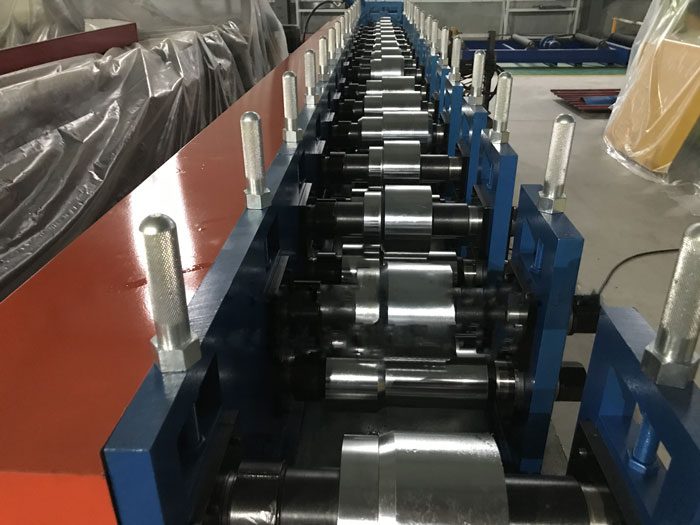

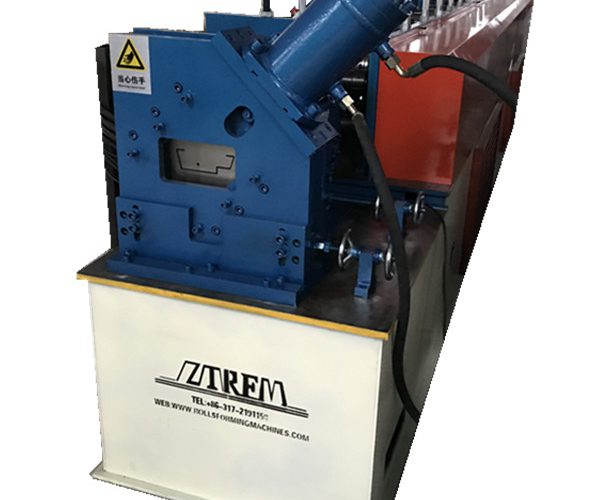

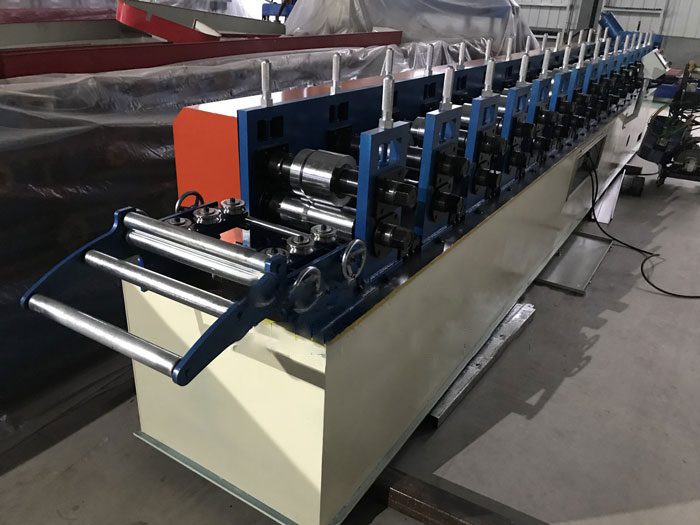

Main pictures of Metal steel door frame roll forming machine:Power:5.5KW

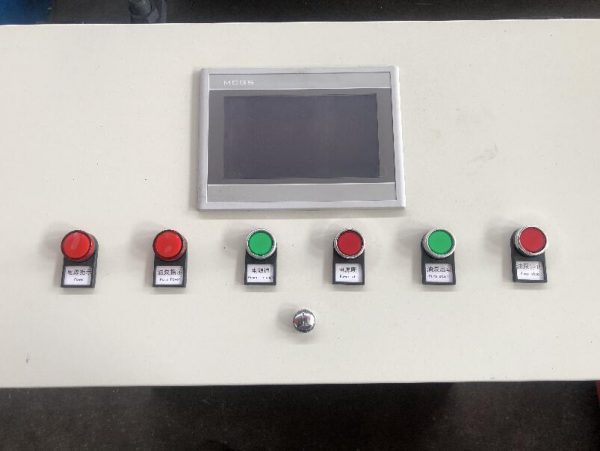

PLC control system of Metal steel door frame roll forming machine:

PLC brand:Delta(Taiwan famous brand)

Screen type:touch screen
