Australian type shutter door roll forming machine

Australian type shutter door roll forming machine is designed to make the shutter in batch fully automatically. Australian & Saudi Style Rolling Shutter Door Machine with low noise than normal  Rolling Shutter Door Machine. The complete door roll forming machine line includes decoiler, main machine, computer controlling system and run out tables. Our machines are equipped with a computer controlling system. We simply program the pieces and length we need in the computer and the door machine produces it automatically. The machines are easy to operate and running stable.

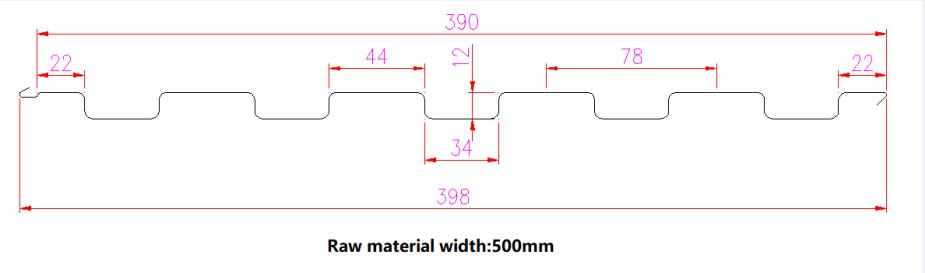

Here I will take the following drawing profile for your reference:

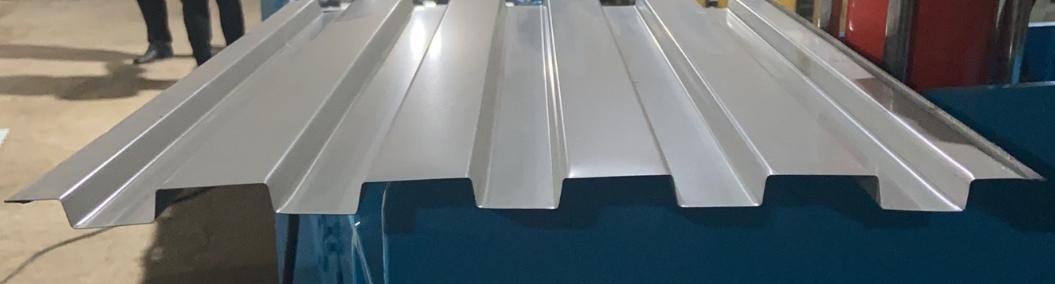

The Australian type shutter:

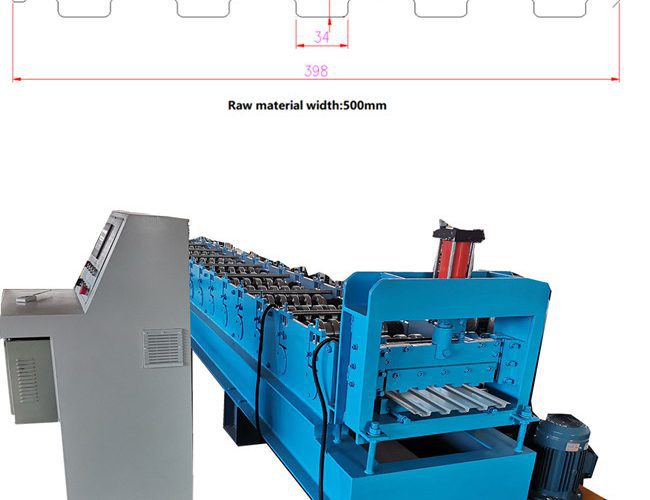

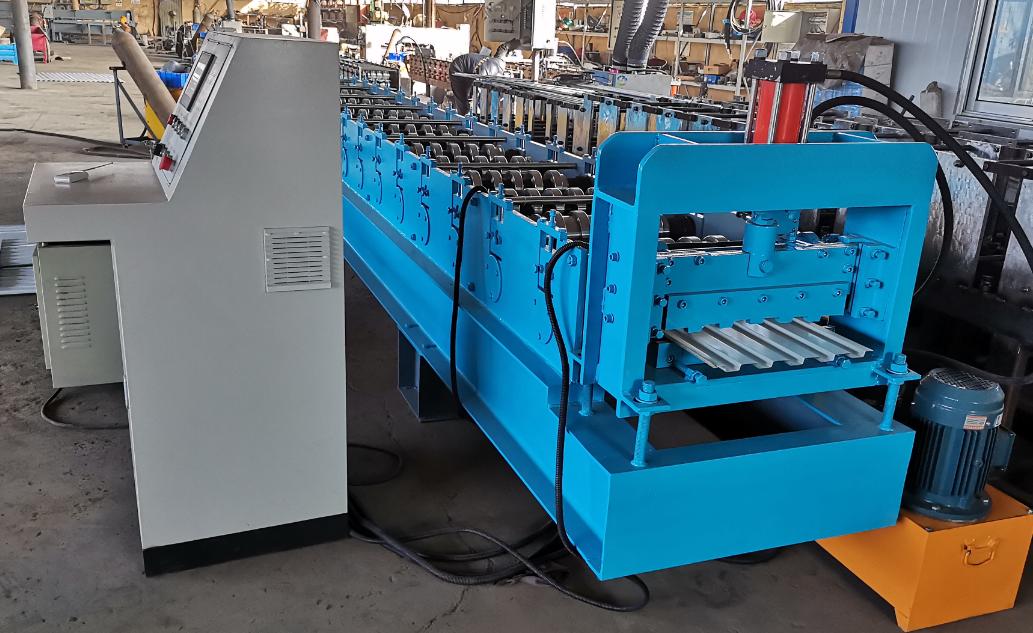

Australian type shutter door roll forming machine design:

Australian type shutter door roll forming machine parameters:

Processing material: colored steel plate, galvanized plate, or aluminium plate

Material thickness:  0.8—1.2 mm

Material hardness: 550 mpa—350 mpa

Material width:  178mm-203mm

Formed width: 101.6mm

Forming speed: 12m/min

Working speed :8m/min

Feature : Ensure stability , precision and lifetime.

Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission( the first and the last roller,the down roller should be attached with the upper one with the chain drive.), roller surfaces polishing, hard plating , heat treatment and galvanizational treatment . The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.

Length of the main part: about 12000х1700х1500

Weight of main part: 5 tons

Voltage : 380V  50HZ 3Phase

Roller fixer :  Guide column

Frame : 400 H steel

Drive mode: chain

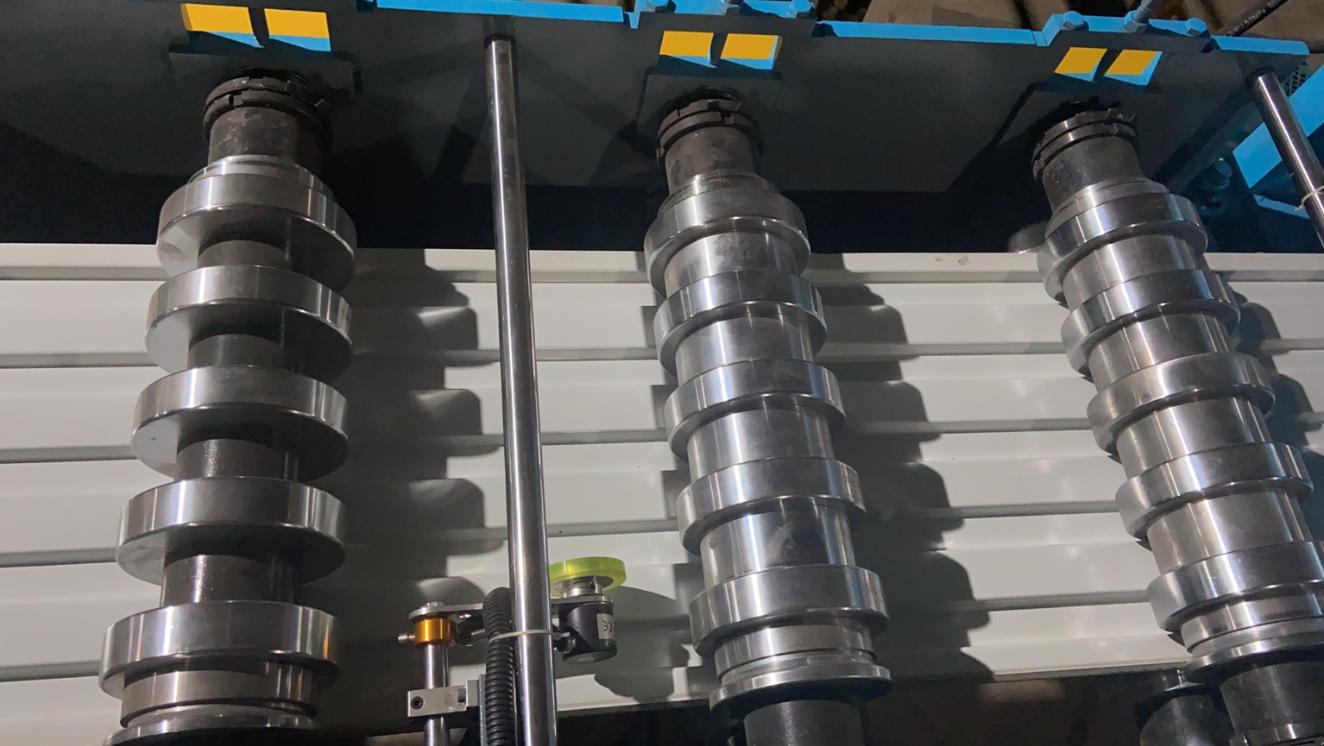

Material of rollers:45# steel, surface hard chromium plating.

Material of shafts: 45# steel with tempering

Diameter of shafts: φ70mm

Number of rollers :  20 rollers

Main power: 15kw(cycloidal planetary gear speed reducer)

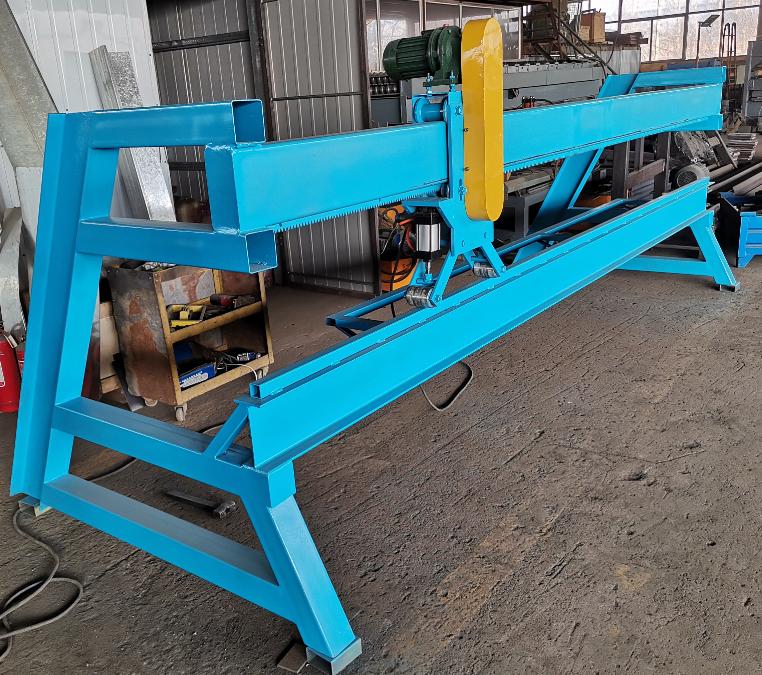

Together with the shutter profiles machine, we also supply the machine of seam locking machine. Here is the seam locking machine pictures for your reference:



Here is the Australian type shutter door roll forming machine working video for your reference:
