Australian Saudi Style Rolling Shutter Door Machine

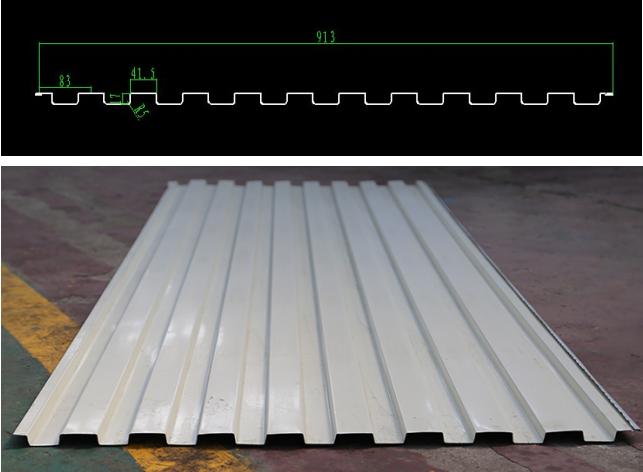

The design of this type Rolling shutters from the Australian and it leads shutter manufacturers B&D. These doors are mostly used for garages in villas and in shops. They can be operated manually or electronically and have an auto reversing safety system. They are water proof & specifically designed to withstand the rigors of the Middle Eastern climate. There are many types, we can design the machine according to the drawing profiles. Here I will take some random drawing profiles for your reference:

Australian Saudi Style Rolling Shutter Door Machine:

Processing material: colored steel plate, galvanized plate, or aluminium plate

Material hardness: 550 mpa—350 mpa

Material width:  178mm-203mm

Formed width: 101.6mm

Forming speed: 20 to 25 m/min

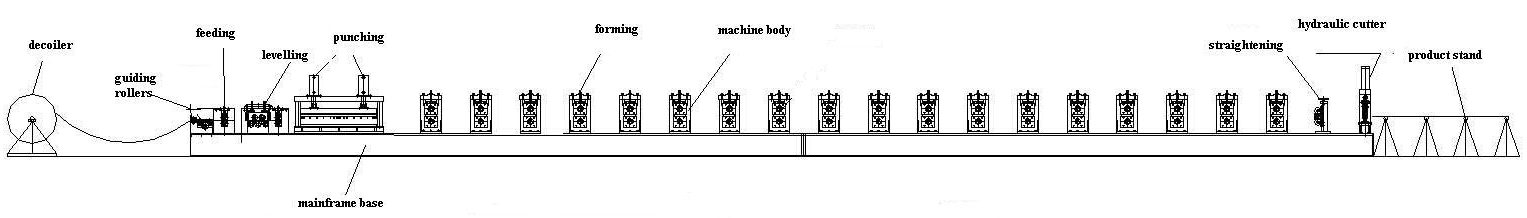

Machine working flow:

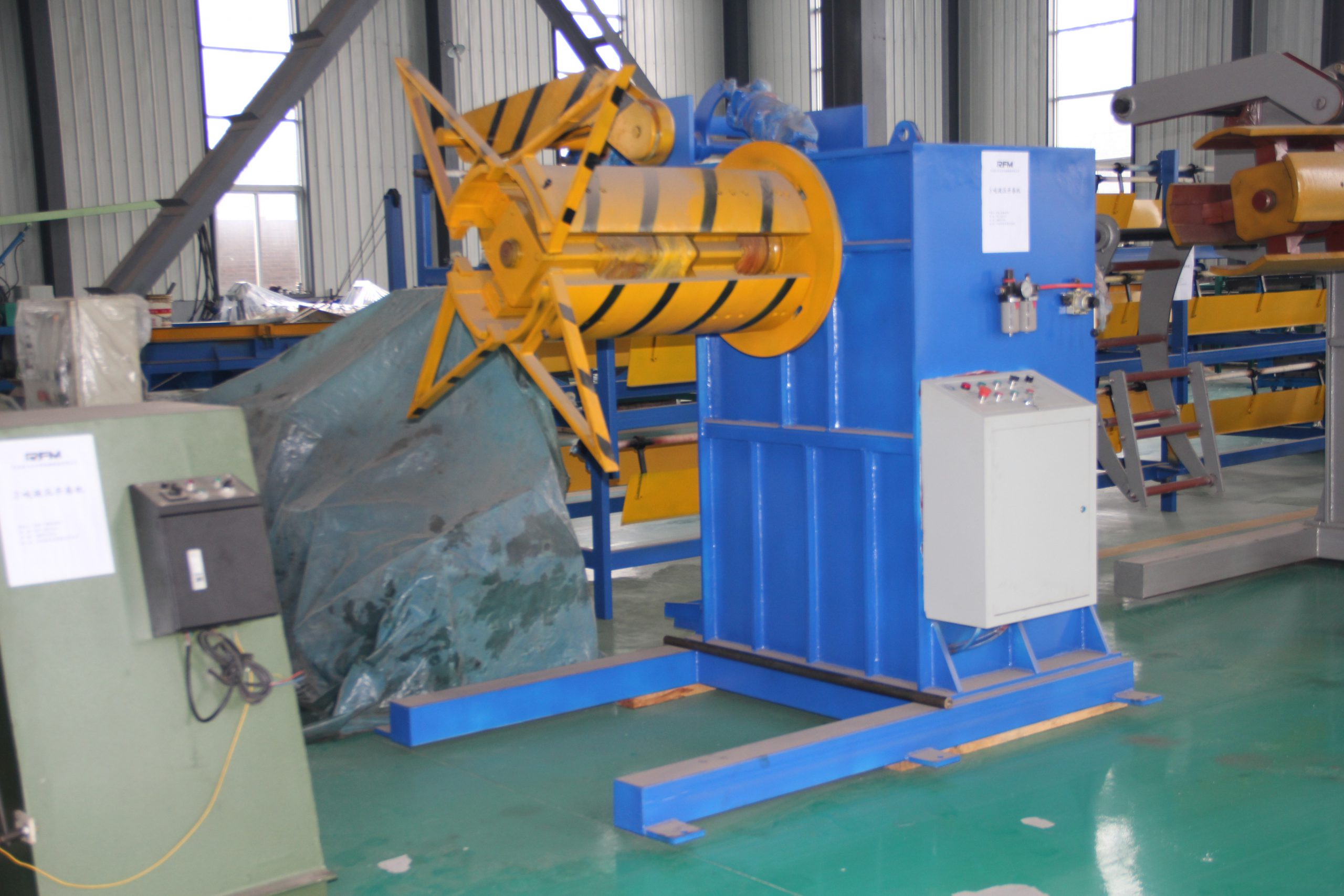

For the decoiler part: you can choose to use manual one or hydraulic one:

Usage: It is used to support the steel coil and uncoil it in a turnable way.

Passive uncoil pulled by roll forming sysytem

Loading capacity:5T

Uncoiling width:400mm

Inner diameter: 450-508mm

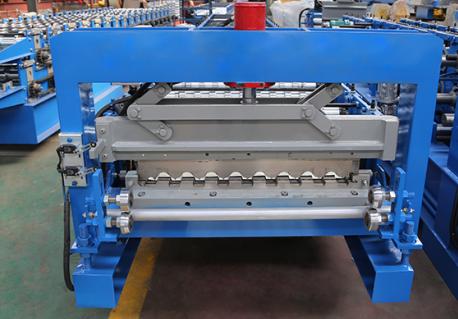

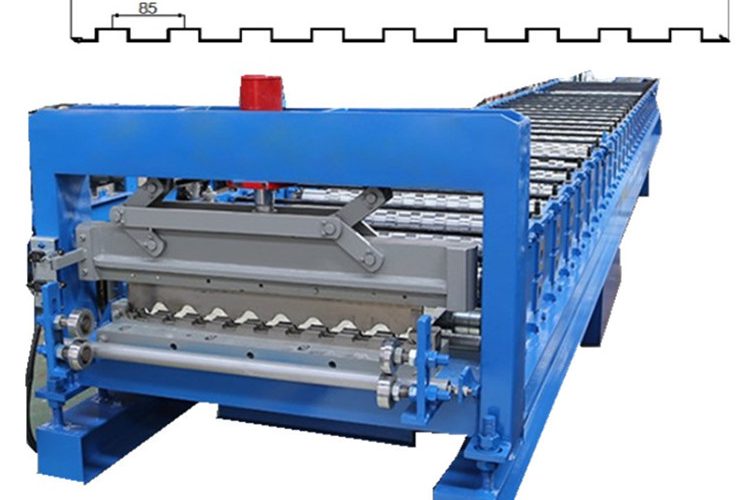

Australian Saudi Style Rolling Shutter Door Machine

Feature: Ensure stability, precision and lifetime.

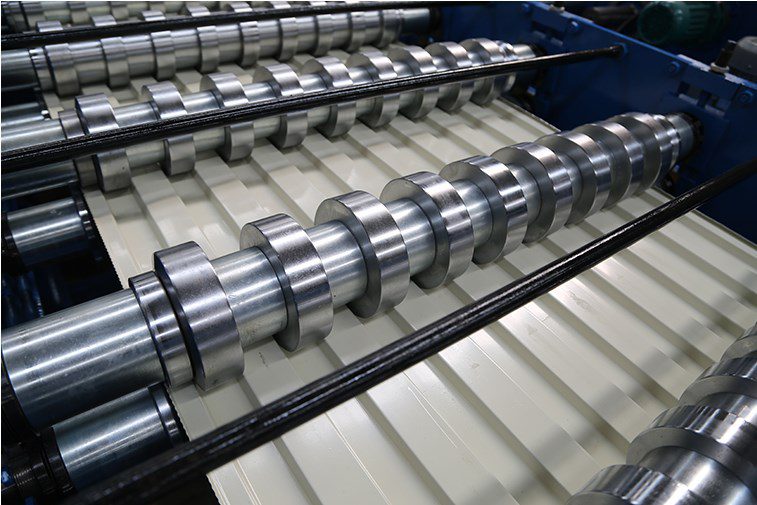

Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission ( the first and the last roller,the down roller should be attached with the upper one with the chain drive.), roller surfaces polishing, hard plating , heat treatment and galvanizational treatment . The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.

Length of the main part: about 12000х1700х1500

Weight of main part: 5 tons

Voltage : 380V  50HZ 3Phase

Roller fixer :  Guide column

Frame : 400 H steel

Drive mode: chain

Material of rollers:45# steel, surface hard chromium plating.

Material of shafts: 45# steel with tempering

Diameter of shafts: φ70mm

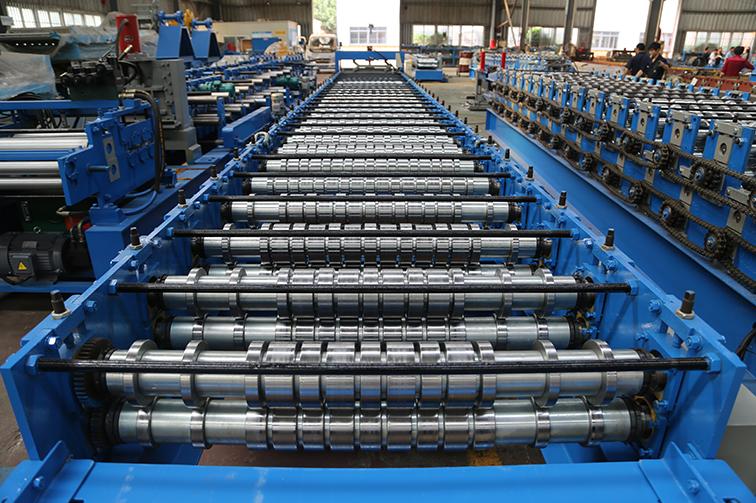

Number of rollers: 25 rollers

Separated molding to make sure shape beautiful.

Main power: 15kw(cycloidal planetary gear speed reducer)

Australian Saudi Style Rolling Shutter Door Machine

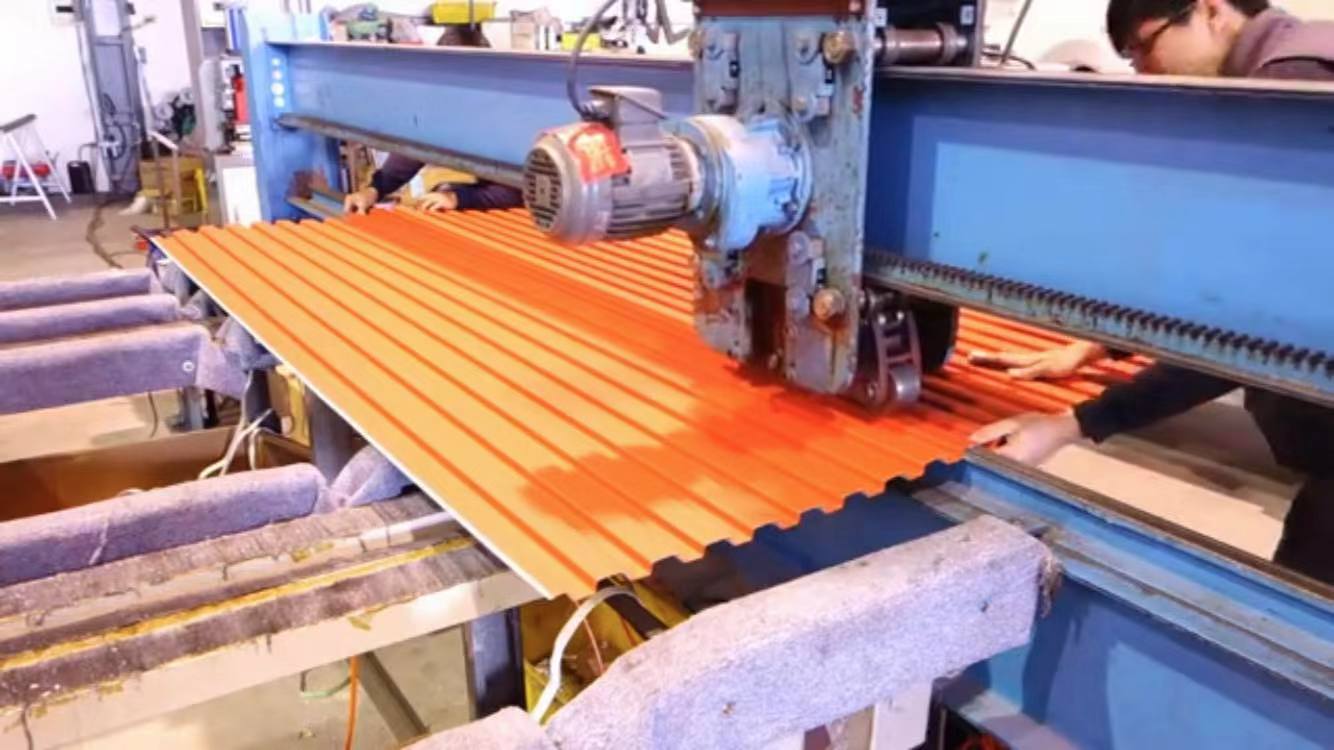

With the seaming device like the following pictures: this device can help you do the connection of the two shutter panels.
