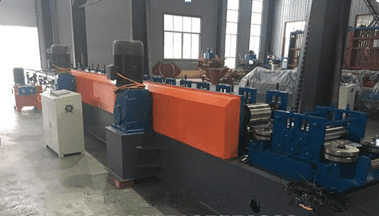

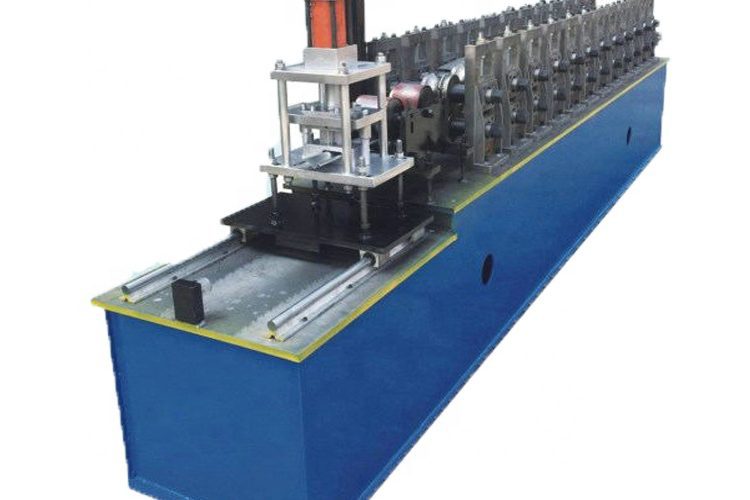

Garage Door rail roll forming machine

Garage Door rail roll forming machine

Where this Machine used:

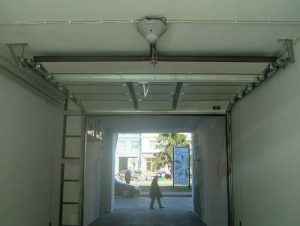

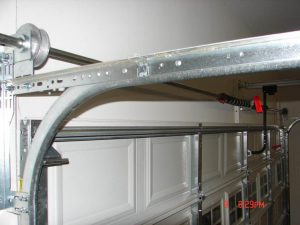

Usually used for the garage door tracks ,Here are some usage pictures for your reference:

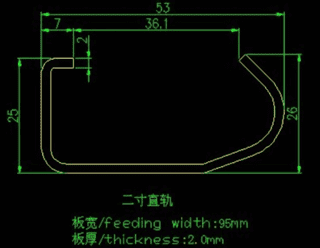

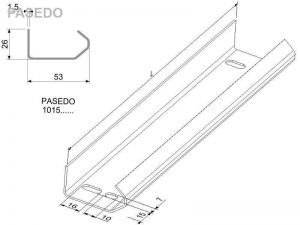

The C type tracks drawing profile is customized(shape/size/and whether punching)

Here are some drawing profiles for your reference.

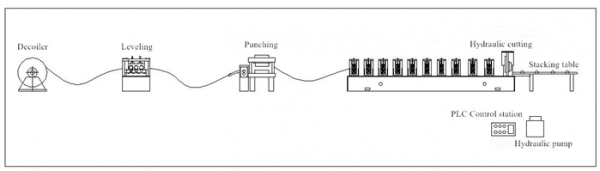

Working flow:

Manual decoiler→Feeding material into punching machine →Roll forming machine →Measure length →Hydraulic cutting →Finished Products

Feeding device Feeding width is adjustable with hand wheel
One set roller to carry and feed the sheet at the beginning
Rolling shaft Shaft material:45# STEEL
Shaft diameter: 70 mm
Tempering treatment to prevent deformed and improve hardness
Roller Cr12
Rolling station 14 rolling stations
Work speed 0-20 m/min
Machine structure Carbon steel welded structure
Machine basic frame Square pipe welded with panel cover
Work power 7.5 kw
Rolling spacer Anti rusty treatment
Steel bar Anti rusty treatment
Transmission By gear with cover
