Popular Design of Rolling Shutter Machine for Algeria

Rolling shutters and rolling grilles require very little headroom above the structural opening. They roll up compactly behind the lintel. No valuable hall space is lost at the sides or ceiling. In fact, we can supply different kinds of roll forming machines for different shutter doors and the rolling shutters rolling forming machines have been sent to lots of countries. If you have yourself door design, show us your design drawing, the good suggestion can be given out by our engineer. If you have any idea about your new project, some professional idea can be getting from us. Here we will take the popular design in Algeria for your reference:

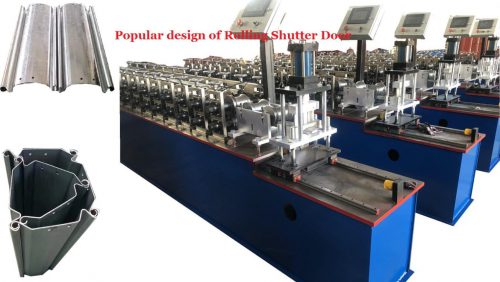

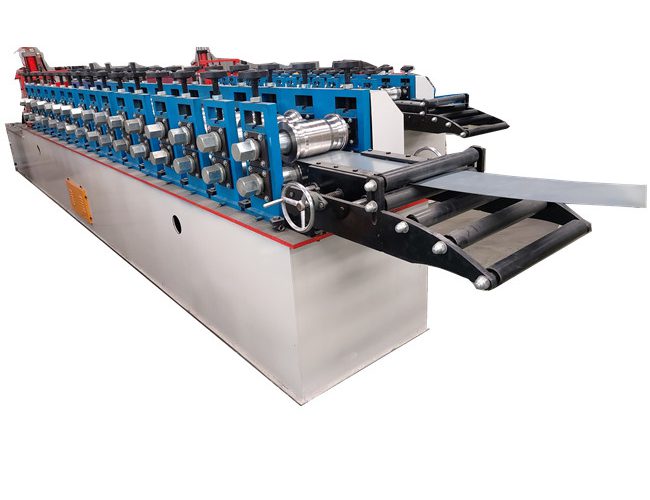

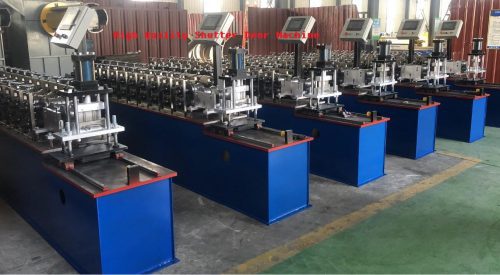

Popular Design of Rolling Shutter Machine for Algeria:

Features of Popular Design of Rolling Shutter Machine for Algeria:

  1. Fully automatic and controlled by PLC, the rolling speed can reach 25 meter per minute.
  2. The frame uses pillar design, looks more beautiful and long time use, will not go rusting easily.
  3. Lower cost but high quality, that is the reason why it is quite popular.
  4. Use the Gcr12 for the roller material and it could be used for a long time.
  5. Portable PLC control, take up small space.
  6. Small and smart design of the machine.

Here are some parameters for your reference:

No. Item Specification
1 Can Formed Material GI,AI
2 Equipment operation Automatic
3 Voltage 380V 60Hz 3Phase or as your requirement
4 Thickness of sheet (mm) 0.8-1.2mm
5 Material width(mm) As your requirement
6 Cover Width of the sheet after formed as your drawing
7 The size of the roll forming machine 5000mmx800mmx1400mm
8 Speed 8-15m/min
9 Diameter of shaft 40mm
10 Weight of the Machine 3000-3500KGS
11 Material of rollers C45 steel quenched and chromed
12 Motor brand Siemens or Guomao
13 PLC Siemens or Delta or Mitsubishi
14 Total power (kw) 8kw
15 Power of hydraulic system 4kw
16 Power of main molding core 4kw

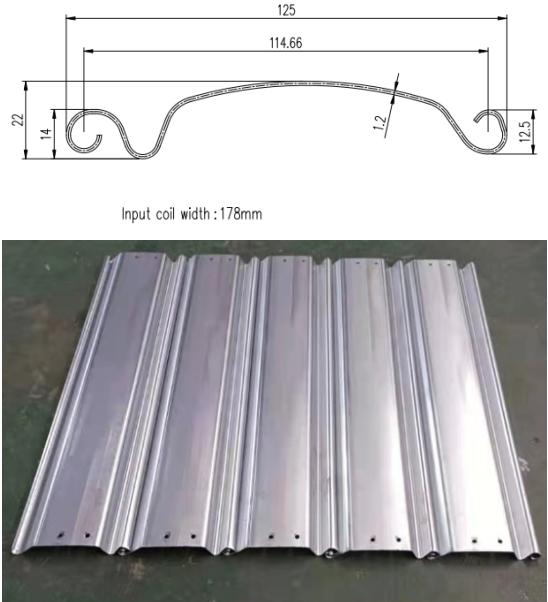

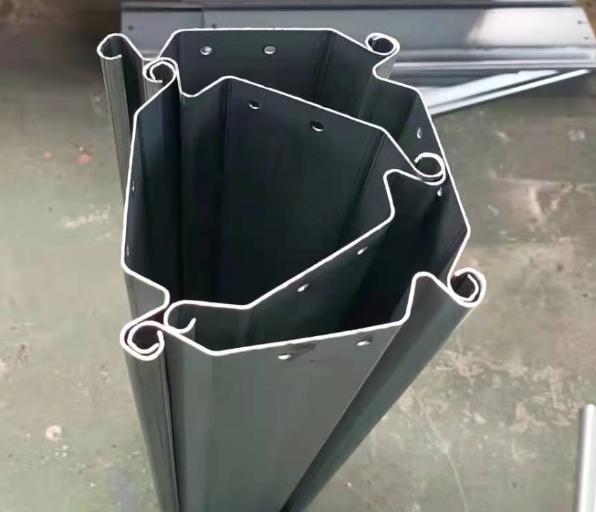

Here are some pictures of shutter we made for your reference:

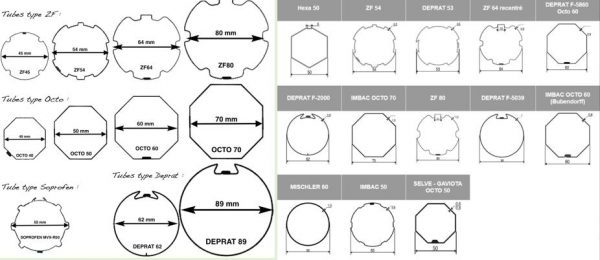

We also supply the following tube related to the shutters:

1.Guardrail.

  1. Bottom rolling shutters.
  2. Shutter Octagonal tube
  3. Rolling shutter protection cover.

All those elements rolling forming machine design could be customized according to the rolling shutter design. Actually all elements are optional like molding frame, middle plate frame, or others. And the machine you can choose hydraulic shearing, disk shearing or flying shearing cutting saw.

And other elements, only if it could be made by rolling, we can try to design for you.

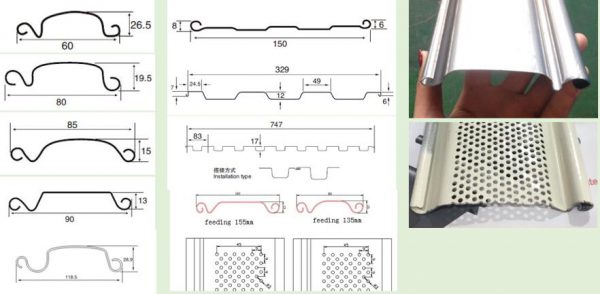

Here are more drawing profile for your reference:

Popular Design of Rolling Shutter Machine Working Videos for your reference:

If you need to know more information, please contact us at any time.
