Rolling Shutter Door Frame Forming Machine

Rolling Shutter Door Frame Forming Machine

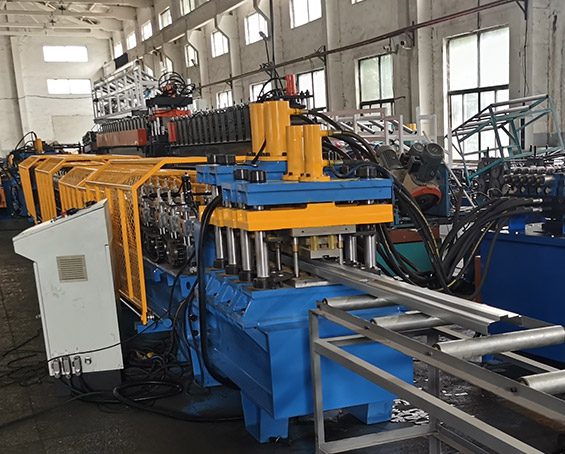

  1. Door frame roll forming machine description

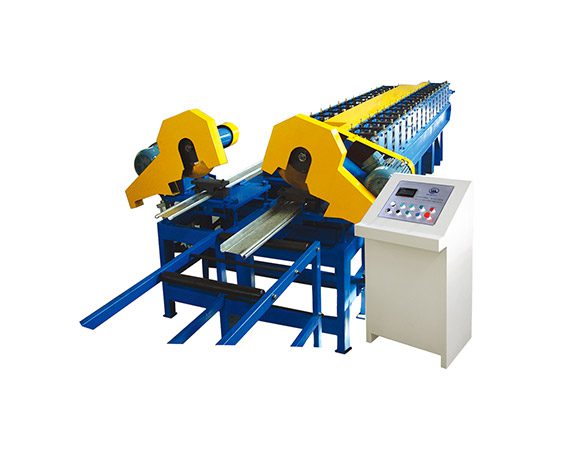

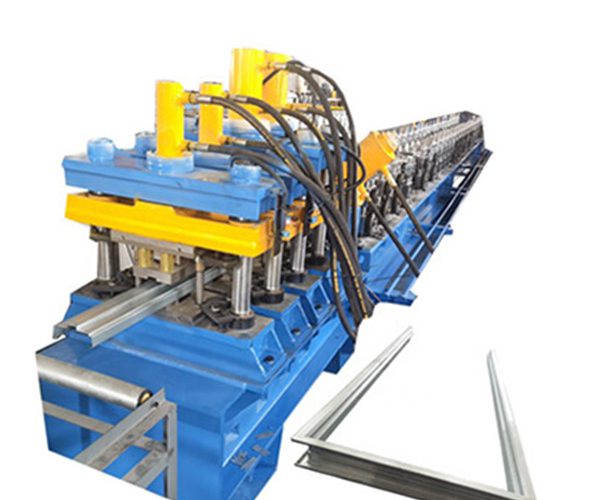

Door Frame Roll Forming Machine can roll-form different kinds of metal door or window frames, reinforced, fire stop doors, etc. The punching also can be designed according to your needs. After roll formed by this roll forming machine, the surface will be very smooth and beautiful without any scratch on surface. We can design machine according to your specification and profile drawing.

2.Roll shutter door forming machine Technical specifications

1). Main forming machine

Number of forming steps: 14 steps

Material of shafts: 45# steel adjustable treatment. Outer diameter 42 mm

Material of rollers: 45#steel, plating hard chrome on the surface, rigidity HR55°-57°

Main motor power: 3 kw

The speed of forming: 8m/min

Thickness of the steel: 0.8-1.2 mm

Dimension of the machine: 4500*800*1000mm

Weight of the machine: 2000kg

2). Hydraulic cutter & punching system

Material of blade: Cr12 mould steel with quenched treatment60-62°C

Cutting system: adopt advanced hydraulic drive, automatically cutting after forming, no distort, no wasting, high safe factor.

Function and structure: cutting and punching the production after forming.

3). The electrical control system

Display: textscr

The main computer (PLC): Tai Da DVP14ES

Hydraulic system

Power: 3KW

Function: apply power for cutting machine and punchi

3.Technical Parameter

No. Item Description
1 Suitable Plate Material Thickness: 1.5-2.0mm, Galvanized steel or blank steel
2 Working Speed 12-15 m/min
3 Roller quantity 18 rollers
4 Material of Roller Gcr15, Quench HRC58-62 Plated Chrome
5 Material of Shaft 45# Advanced Steel (Diameter: 76mm), thermal refining
6 Driven system Gear box drive
7 Main Power with reducer 7.5KW
8 Cutting model: Hydraulic Cutting Cr12mov
9 Material of Cutting blade Cr12Mov, Quench HRC58-62
10 Hydraulic Station Power 7.5KW
11 Operation system Controlled by industry computer-PLC system.
12 PLC brand Siemens with Japan English and Chinese Language
13 Touch Screen Siemens Japan
14 Encoder Omron, Japan
15 Electric parts Schneider
